Spesifikasi Total Station Nikon N5

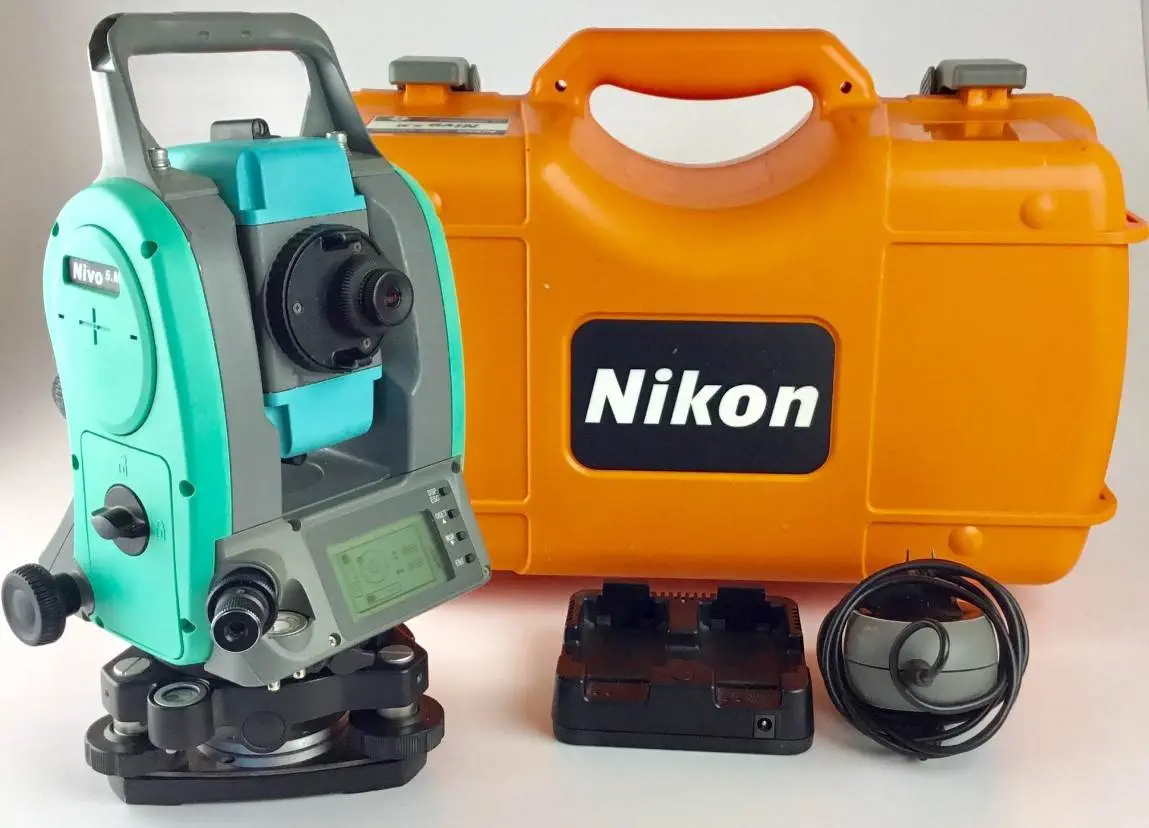

Total Station Nikon N5

Total station adalah alat instrumen optis/elektronik yang lengkap dapat mengukur sudut dan jarak sehingga dapat digunakan dalam pemetaan dan kontruksi  dan bangunan. Total station merupakan  alat terintegrasi dengan komponen pengukur jarak elektronik (electronic distance meter (EDM)) untuk membaca jarak dan kemiringan dari instrumen ke titik tertentu. Total Station Nikon N5 mempunyai  kinerja yang sangat memuaskan bagi para pengguna dalam pengukuran di lapangan. Dengan keakuratan hasil pengukuran yang sangat baik dan tepat. Seri Total Station Nikon N5 ini mempunyai akurasi 5 detik yang sangat membantu ketika pengukuran di lapangan. Total Station Nikon N5 banyak di gandrungi para surveyor karena ke akuratan hasil yang sangat baik.

Dari semua Seri Total Station Nikon Hanya Seri Total Station Nikon N series yang sangat baik dalam hasil pengukuran di lapangan.Ini menjadi salah satu tolak ukur bagi para surveyor ketika membeli alat  Tota Station dengan keakuratan akurasi yang sangat baik dari Seri Total Station Nikon N5. Total Station Nikon N5 ini merupakan produk Nikon terbaru pada jenis Total Station dengan beberapa fitur unggulan. Total Station Nikon N5 ini sangat membantu para Surveyor dalam kerja lapangan karna menghasilkan hasil yang terbukti akurat.

Fitur Total Station Nikon N5

• EDM MODE(S) : Prism and Reflectorless
• DISPLAYS : Single
• LASER POINTER : Ada
• IN-FIELD CHARGING : Ada
• PHONE APP COMPATIBLE : Ada

Spesifikasi Total Station Nikon N5

DISTANCE MEASUREMENT

Range with Nikon specified prisms

With reflector sheet (5 × 5 cm)                 : 1.5 m to 300 m (4.9 ft to 984 ft)

With single prism 6.25 cm (2.5 in)            : 4,000 m (13,123 ft)

Range reflectorless mode (Nikon N)

KGC (18%)

Good¹                               : 400 m (1312 ft)

Normal²                            : 300 m (984 ft)

Difficult³                           : 235 m (771 ft)

KGC (90%)

Good¹                                : 600 m (1968 ft)

Normal²                            : 500 m (1640 ft)

Difficult³                           : 250 m (820 ft)

Accuracy⁴

Prism⁵                               : ±(2+2 ppm × D) mm

Reflector sheet               : ±(3+2 ppm × D) mm

Reflectorless⁶                  : ±(3+2 ppm × D) mm

Measuring interval⁷

Prism mode

Precise mode     : 1.1 sec.

Normal mode    : 0.6 sec.

Fast mode          : 0.4 sec.

Reflectorless mode (Nikon N)

Precise mode    : 1.1 sec.

Normal mode    : 0.6 sec.

Fast mode          : 0.4 sec.

Least count

Precise mode                   : 0.1 mm (0.0002 ft)

Normal mode                   : 1 mm (0.002 ft)

ANGLE MEASUREMENT

Accuracy⁸ (horizontal and vertical)           : 2“ (0.6 mgon), or 5“ (1.5 mgon)

Reading system                                            : Photoelectric detection by incremental encoder

Circle diameter                                            : 88 mm (3.46 in)

Horizontal angle                                           : 2”:Diametrical, 5”:Single

Vertical angle                                               : Single

Minimum increment                                   : 1/5/10” (0.2/1/2 mgon)

TELESCOPE

Tube length                                   : 125 mm (4.9 in)

Image                                              : Erect

Magnification                                : 30× (18x/36x with optional eyepieces)

Effective diameter of objective   : 45 mm (1.77in)

Field of view                                   : 1°20‘

Resolving power                            : 3”

Minimum focusing distance        : 1.5 m (4.9 ft)

Laser Pointer (Nikon N)                : Coaxial Red Light

TILT SENSOR

Type                                  : Dual axis

Method                                           : Liquid-electric detection

Compensation range      : ±3‘

COMMUNICATIONS

Communication ports    : 1 x serial (RS-232C)

WIRELESS COMMUNICATIONS

Bluetooth                         : Integrated

GENERAL SPECIFICATIONS

Level vials

Sensitivity of Circular level vial   : 10‘/2 mm

Optical plummet

Image                                               :Erect

Magnification                                 : 3X

Field of view                                   : 5°

Focusing range                               : 0.5 m (1.6 ft) to ∞

Display

2“          : Both sides, backlit, graphic LCD (128 × 64 pixel)

5“          : Single side, backlit, graphic LCD (128 × 64 pixel)

Point memory                 : 50,000 records

Dimensions (W x D x H) :168 mm x 173 mm x 335 mm (6.6 in x 6.8 in x 13.1 in)

Weight (approx.)

Main unit (without battery)        : 4.9 kg (10.8 lb)

Battery                                            : 0.1 kg (0.2 lb)

Battery charger                              : 0.05 kg (0.1 lb)

Carrying case                                  : 2.5 kg (5.5 lb)

Power

Clip-on Li-on battery       : x1 incl.

Operating time⁹ (per battery)

Continuous distance/angle measurement            : approx. 4.5 hours

Distance/angle measurement every 30 seconds : approx. 14 hours

Continuous angle measurement                             : approx. 22 hours

Charging time

Full charge         : 6 hours

External power supply   : Yes

ENVIRONMENTAL

Ambient temperature range       : –20 °C to +50 °C (–4 °F to +122 °F)

Atmospheric correction

Temperature range                      : –40 °C to +60 °C (–40 °F to +140 °F)

Barometric pressure                    : 400 to 999 mmHg (533 to 1,332 hPa, or 15.8 to 39.3 inHg)

Dust and water protection          : IP55

CERTIFICATION

Class B Part 15 FCC certification, CE Mark approval. IEC60825-1:2014

Reflectorless mode         : Class 1

Laser Pointer                    : Class 2

Prism mode                      : Class 1
