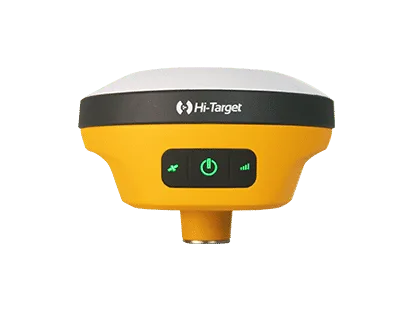

GPS GEODETIK/GNSS HI-TARGET V200 RTK

GPS GEODETIK/GNSS HI-TARGET V200

In the box :

1x V200 Base
1x V30 Plus Rover
1x Controller iHand 55
1x External Radio HDL460A
1x Pole Carbon
2x Tripod
1x Tribrach
1x Rotatong GPS Adapter
1x Pole Extension

Spesifikasi GPS Geodetik/GNSS Hi-Target V200 RTK

• GNSS SIGNAL

  • Channels: 1408
  • GPS: L1 / L2 / L5 / L2C
  • BDS: B1 / B2 / B3 / B1C / B2a
  • GLONASS: L1/L2/L3
  • Galileo: E1 / E5 / AltBOC / E5a / E5b / E6
  • SBAS: L1 / L5
  • QZSS: L1 / L2 / L5 / L6
  • IRNSS: L5

• POSITIONING PERFORMANCE

  • High Precision static GNSS Surveying
    • Horizontal : 2.5mm + 0.1ppm RMS
    • Vertical: 3.5mm + 0.4ppm RMS
  • Static and Fast Static
    • Horizontal: 2.5mm + 0.5ppm RMS
    • Vertical: 5mm + 0.5ppm RMS
  • Post Processing Kinematic (PPK / Stop & Go)
    • Horizontal: 8mm + 1ppm RMS
    • Vertical: 15mm + 1ppm RMS
    • Initialization time: Typically 10 min for base and 5 min for rover
    • Initialization reliability: Typically > 99.9%
  • Code Differential GNSS Positioning
    • Horizontal: ±0.25m + 1ppm RMS
    • Vertical: ±0.5m + 1 ppm RMS
    • SBAS: 0.5m (H), 0.85m (V)
  • Real Time Kinematic (RTK)
    • Horizontal: 8mm+1ppm RMS
    • Vertical: 15mm+1ppm RMS
    • Initialization time: Typically <10s
    • Initialization reliability: Typically > 99.9%
  • Time to First Fix
    • Cold Start: <45 s
    • Hot Start: <30 s
    • Signal re-acquisition: <2 s
  • Hi-Fix
    • Horizontal: RTK+10mm / minute RMS
    • Vertical: RTK+20mm / minute RMS
  • Tilt Survey Performance
    • Additional horizontal pole-tilt uncertainty typically less than 8mm +0.7mm / °tilt (2.5cm accuracy in the inclination of 30°)

• COMMUNICATION

  • Communication
    • Bluetooth: 4.2 / 2.1+EDR, 2.4GHz
    • WiFi: Frequency 2.4GHz, Supports 802.11a/b/g/n
  • Internal UHF Radio
    • Frequency: 410-470MHz
    • Channel: 116 (16 scalable)
    • Transmitting power: 0.5W/ 1W / 2W adjustable
    • Support multi-communication protocols:
      • Hi-Target
      • TRIMTALK450S
      • TRIMMARK III
      • TRANSEOT
      • SATEL-3AS
      • etc.

• PHYSICAL

  • Internal Battery
    • Internal 7.4V / 6800mAh lithium-ion rechargeable battery
    • RTK Rover (network) for 12 hours
    • Static: up to 15 hours
  • External Power
    • Power Consumption: 4.2W
    • Dimension (W x H): 132mm x 67mm
    • Charging: using standard smartphone chargers or external power banks
    • Weight: ≤0.8kg (include battery)
    • Data Storage: 8GB ROM internal storage

• CONTROL PANEL

  • LED Lamp:
    • Satellite
    • Signal
    • Power
  • Physical button: 1

• ENVIRONMENT

  • Water / Dustproof: IP67
  • Shock and vibration: Designed to survive a 2m natural fall onto concrete
  • Humidity: 100%, condensing
  • Operation Temperature: -30°C~+70°C
  • Storage Temperature: -40°C~+80°C

• I/O INTERFACE

  • 1x USB port, type C
  • 1x SMA antenna connector

• DATA FORMATS

  • Output rate: 1Hz-20Hz.
  • Static data format: GNS, Rinex
  • Network model: VRS, FKP, MAC; supports NTRIP protocol
  • CMR& RTCM: CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2
  • Navigation outputs ASCII: NMEA-0183
